EA-15 Measurement Display Unit

Design Ideation, Industrial Design, 3D-CAD, Interface Design, Design Engineering, Usability

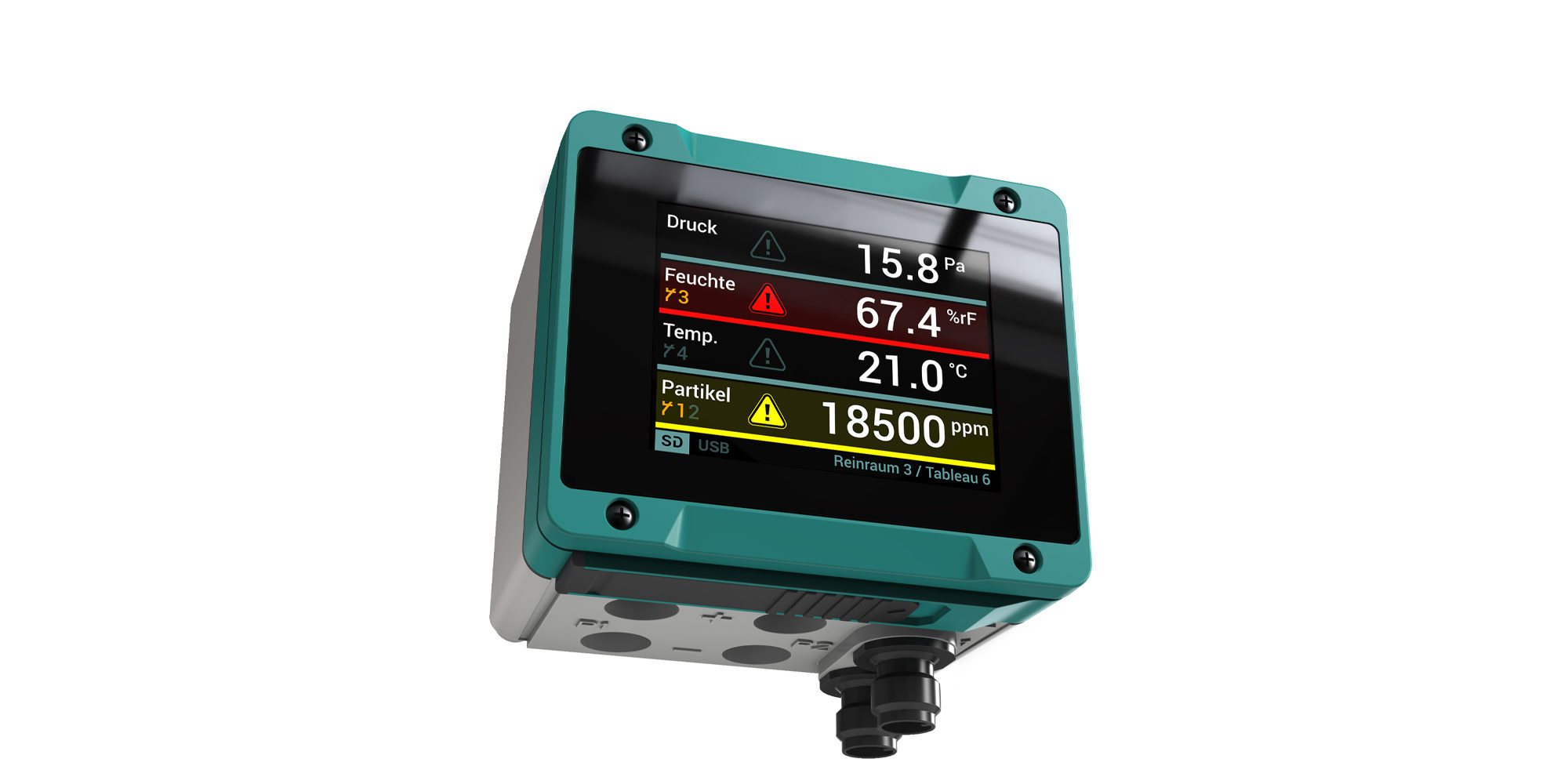

The EA15 is a measurement display unit for transmitters with output signals current or voltage according to IEC 60381. Up to four transmitters can be connected in two or three wire circuits.

Despite the small design, an excellent usability for both interface and hardware interface is guaranteed. The development of the intuitive operating concept of the display with high contrast values allows good readability even at a greater distance. Language-neutral symbols and the logical color concept efficiently inform different users.

In terms of its enclosure, an integrative sealing lip with hinge function was realized in the smallest installation space, which ensures IP64 compatibility.
